PowerMan Product Range

Model

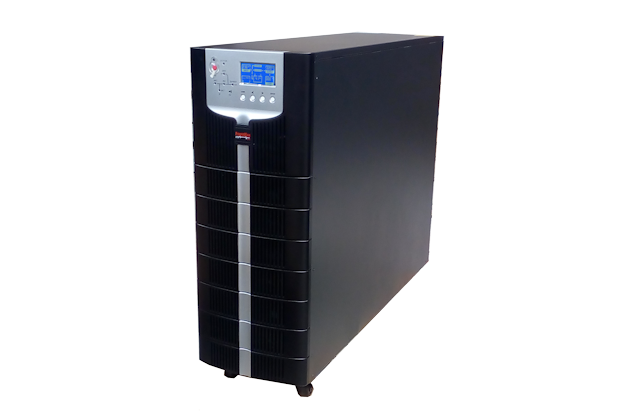

PM33-HF010S

Capacity

10000VA/9000W

Input

Voltage Range

380 VAC ± 25%

Frequency Range

40Hz to 70Hz

Output

Voltage Range

380 VAC ± 25%

Frequency Range

40Hz to 70Hz

Waveform

Sine Wave

Output Battery

Battery Size

40 x 12V7AH

Recharge Time

90% Capacity after 8 hours

Backup Time @ % Load || Max Load: 13 Amps / Phase

25%

35 m

50%

15 m

75%

8 m

General

Size

250mm x 840mm x 715mm

Weight

120 kgs

Software

USB Management Software

SNMP

SNMP card optional extra

Warranty

Unit

Units carry a 24 month warranty and are sold subject to PowerMan standard terms and conditions, a copy of which is available on request.

Batteries

The batteries carry a 3 months warranty and are sold subject to PowerMan standard terms and conditions, a copy of which is available on request.

	High Frequency, transformerless design results in a small compact unit to suit an office or server room environment
	On-Line double conversion technology
	True sine wave output with less than 3% THD
	Zero transfer time
	Advanced battery management (ABM)
	Batteries automatically charge when inverter is off
	UPS will start without mains present (cold start)
	Self diagnosis on UPS start up
	Lightning and surge protection built in
	USB Management Software (SNMP Optional)
	LCD Display
	Compatible with most brands of generator
