PowerMan Product Range

Features
Specifications

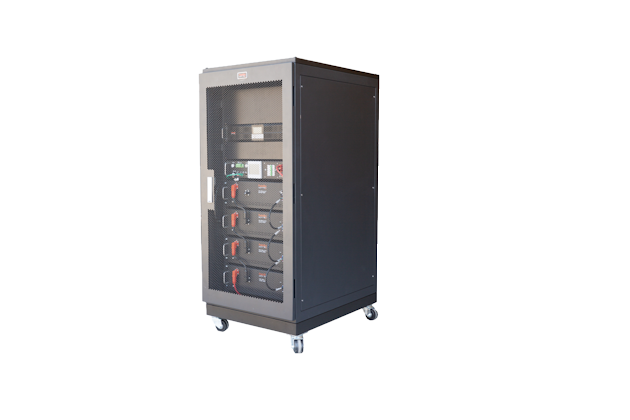

Model PM11-HF10LFP-050

Capacity 10000VA/9000W

Input

Voltage Range 380VAC ± 25%

Frequency Range 40Hz to 70Hz

Output

Voltage Range 380VAC ± 25%

Frequency Range 40Hz to 70Hz

Waveform Sine Wave

Output Battery

Battery Size 1 x 192V50Ah LiFeP04

Recharge Time 100% Capacity after 5 hours

Backup Time @ % Load || Max Load: 39 Amps

25% 4 hrs 50% 2 hrs 75% 1,4 hrs

General

Size 438mm x 550mm x 86mm

Weight 14 kgs

Software Standard, Connected to UPS Comms port

SNMP SNMP card optional extra

Battery Box

Size 4 x 435mm x 500mm x 140mm

Weight 116 kgs

Warranty

Unit Units carry a 24 month warranty and are sold subject to PowerMan standard terms and conditions, a copy of which is available on request.

Batteries 5 Years or 3000 Cycles @ 80% depth of discharge (DOD)

Online double conversion technology to recreate a clean output at all times.
Recharge - The UPS is equipped with an advanced battery charger that will recover the battery from 80% discharge to fully charged within 4 to 5 hours.
LCD on the UPS - Gives users accurate information on the input and output voltages on the UPS frequency as well.
LCD on the Display Battery Management Unit (BMU) - Gives accurate information on the status of each cell within each battery pack, cell voltage, temperature and state of charge.
DC start capability - Units are able to start and run with no mains input.
USB and SNMP as standard Communication ports - Allows the UPS to connect to the computer system or network, and in conjunction with various software packages, can supply information on the status of the UPS and perform shut down.
Generator compatible input - The output power from the generator can vary as different loads come on and go off, the UPS will ensure that your equipment is not be damaged by the voltage fluctuations from the generator.
