PowerMan Product Range

Features
Specifications

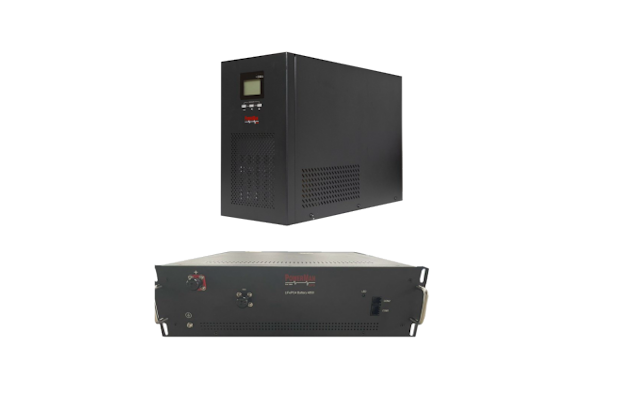

Model PM2300E-050LFP

Capacity 3000VA/2400W

Input

Voltage Range 230V AC ± 25%

Frequency Range 50Hz ± 10%

Output

Voltage Range 230V AC ± 25%

Frequency Range 50Hz ± 10%

Waveform Sine Wave

Output Battery

Battery Size 1 x 48V50Ah LFP

Recharge Time 90% Capacity after 8 hours

Backup Time @ % Load || Max Load: 10.4 Amps

25% 5 Hours 50% 2 Hours 75% 1,25 Hours

General

Size 442mm x 420mm x 135mm

Weight 45 kgs

Software USB Management Software

SNMP SNMP card optional extra

Battery Box

Size 190mm x 467mm x 336mm

Weight 28 kgs

Warranty

Unit Units carry a 24 month carry-in warranty and are sold subject to PowerMan standard terms and conditions, a copy of which is available on request.

Batteries 5 Years or 3000 Cycles @ 80% depth of discharge (DOD)

Online double conversion technology to recreate a clean output at all times.
Recharge - The UPS is equipped with an advanced battery charger that will recover the battery from 80% discharge to fully charged within 4 to 5 hours.
LCD on the UPS - Gives users accurate information on the input and output voltages on the UPS frequency as well.
LCD on the Display Battery Management Unit (BMU) - Gives accurate information on the status of each cell within each battery pack, cell voltage, temperature and state of charge.
DC start capability - Units are able to start and run with no mains input.
USB and SNMP as standard Communication ports - Allows the UPS to connect to the computer system or network, and in conjunction with various software packages, can supply information on the status of the UPS and perform shut down.
Generator compatible input - The output power from the generator can vary as different loads come on and go off, the UPS will ensure that your equipment is not be damaged by the voltage fluctuations from the generator.
